Machinery Bushings
Machinery bushings are needed and used in different applications, part, and service areas, as shims, spacers, bushings, and wear plates. In addition, washer bushings can take up play or fill a gap, and in many cases are designed into new part designs as well as used for repairs on existing products or assemblies. DACO Precision-Tool produces a full range of narrow and wide rim machinery bushings for a variety of customers and hardware distributors across the country plus abroad. We also stock a full range of bushings in different sizes, all made with ID bolt clearance, along with narrow rim or wide rim profiles. Our capabilities also extend to the production of heavy gage sizes, such as 3/16” thick and special order 1/4” thick sizes. You can purchase machinery bushings from DACO with a number of finishes, including plain or zinc clear and yellow or black finish. We also entertain special orders, such as stainless steel or high carbon steel bushings with hardening as well as metal bushings that are hardened and ground to exact thickness or shim requirements. Most common sizes, such as 18GA-.048, 14GA-.068, and 10GA-.138 are in stock and can be shipped quickly out of our inventory. Please contact us for price list or quick price quote.
| MB | ID Bolt Clearance | OD Rim Size (Narrow) | OD Rim Size(Wide) | 18 GA. (.042 to .054) Thick | 14 GA. (.068 to .082) Thick | 10 GA. (.126 to .142) Thick | 3/16" (.1875) Thick |
|---|---|---|---|---|---|---|---|
| #1 | 1/2" in | 7/8" in | N/A | 18 x 1/2 x 7/8 | 14 x 1/2 x 7/8 | 10 x 1/2 x 7/8 | N/A |
| #1 | 9/16" in | 15/16" in | N/A | 18 x 9/16 x 15/16 | 14 x 9/16 x 15/16 | 10 x 9/16 x 15/16 | N/A |
| #1 | 5/8" in | 1" in | N/A | 18 x 5/8 x 1 | 14 x 5/8 x 1 | 10 x 5/8 x 1 | N/A |
| #1 | 3/4" in | 1-1/4" in | N/A | 18 x 3/4 x 1-1/4 | 14 x 3/4 x 1-1/4 | 10 x 3/4 x 1-1/4 | N/A |
| #1 | 7/8" in | 1-3/8" in | N/A | 18 x 7/8 x 1-3/8 | 14 x 7/8 x 1-3/8 | 10 x 7/8 x 1-3/8 | N/A |
| #1 | 1" in | 1-1/2" in | N/A | 18 x 1 x 1-1/2 | 14 x 1 x 1-1/2 | 10 x 1 x 1-1/2 | N/A |
| #1 | 1-1/8" in | 1-3/4" in | N/A | 18 x 1-1/8 x 1-3/4 | 14 x 1-1/8 x 1-3/4 | 10 x 1-1/8 x 1-3/4 | N/A |
| #1 | 1-1/4" in | 1-7/8" in | N/A | 18 x 1-1/4 x 1 7/8 | 14 x 1-1/4 x 1 7/8 | 10 x 1-1/4 x 1 7/8 | N/A |
| #1 | 1-3/8" in | 2-1/8" in | N/A | 18 x 1-3/8 x 2-1/8 | 14 x 1-3/8 x 2-1/8 | 10 x 1-3/8 x 2-1/8 | N/A |
| #1 | 1-1/2" in | 2-1/4" in | N/A | 18 x 1-1/2 x 2-1/4 | 14 x 1-1/2 x 2-1/4 | 10 x 1-1/2 x 2-1/4 | N/A |
| #1 | 1-5/8" in | 2-3/8" in | N/A | 18 x 1-5/8 x 2-3/8 | 14 x 1-5/8 x 2-3/8 | 10 x 1-5/8 x 2-3/8 | N/A |
| #1 | 1-3/4" in | 2-1/2" in | N/A | 18 x 1-3/4 x 2-1/2 | 14 x 1-3/4 x 2-1/2 | 10 x 1-3/4 x 2-1/2 | N/A |
| #1 | 1-7/8" in | 2-7/8" in | N/A | 18 x 1 7/8 x 2 7/8 | 14 x 1 7/8 x 2 7/8 | 10 x 1 7/8 x 2 7/8 | N/A |
| #1 | 2" in | 3" in | N/A | 18 x 2 x 3 | 14 x 2 x 3 | 10 x 2 x 3 | N/A |
| #1 | 2-1/8" in | 3-1/8" in | N/A | 18 x 2-1/8 x 3-1/8 | 14 x 2-1/8 x 3-1/8 | 10 x 2-1/8 x 3-1/8 | N/A |
| #1 | 2-1/4" in | 3-1/4" in | N/A | 18 x 2-1/4 x 3-1/4 | 14 x 2-1/4 x 3-1/4 | 10 x 2-1/4 x 3-1/4 | N/A |
| #1 | 2-3/8" in | 3-3/8" in | N/A | 18 x 2-3/8 x 3 3/8 | 14 x 2-3/8 x 3 3/8 | 10 x 2-3/8 x 3 3/8 | N/A |
| #1 | 2-1/2" in | 3-1/2" in | N/A | 18 x 2-1/2 x 3-1/2 | 14 x 2-1/2 x 3-1/2 | 10 x 2-1/2 x 3-1/2 | N/A |
| #2 | 5/8" in | N/A | 1-1/4" in | 18 x 5/8 x 1-1/4 | 14 x 5/8 x 1-1/4 | 10 x 5/8 x 1-1/4 | N/A |
| #2 | 3/4" in | N/A | 1-1/2" in | 18 x 3/4 x 1-1/2 | 14 x 3/4 x 1-1/2 | 10 x 3/4 x 1-1/2 | N/A |
| #2 | 7/8" in | N/A | 1 3/4" in | 18 x 7/8 x 1-3/4 | 14 x 7/8 x 1-3/4 | 10 x 7/8 x 1-3/4 | N/A |
| #2 | 15/16" in | N/A | 1 7/8" in | 18 x 15/16 x 1 7/8 | 14 x 15/16 x 1-7/8 | 10 x 15/16 x 1-7/8 | N/A |
| #2 | 1" in | N/A | 2" in | 18 x 1 x 2 | 14 x 1 x 2 | 10 x 1 x 2 | N/A |
| #2 | 1-1/16" in | N/A | 2-1/16" in | 18 x 1-1/16 x 2-1/16 | 14 x 1-1/16 x 2-1/16 | 10 x 1-1/16 x 2-1/16 | N/A |
| #2 | 1-1/8" in | N/A | 2-1/8" in | 18 x 1-1/8 x 2-1/8 | 14 x 1-1/8 x 2-1/8 | 10 x 1-1/8 x 2-1/8 | N/A |
| #2 | 1-1/4" in | N/A | 2-1/4" in | 18 x 1-1/4 x 2-1/4 | 14 x 1-1/4 x 2-1/4 | 10 x 1-1/4 x 2-1/4 | N/A |
| #2 | 1-3/8" in | N/A | 2-1/2" in | 18 x 1-3/8 x 2-1/2 | 14 x 1-3/8 x 2-1/2 | 10 x 1-3/8 x 2-1/2 | N/A |
| #2 | 1-1/2" in | N/A | 3" in | 18 x 1-1/2 x 3 | 14 x 1-1/2 x 3 | 10 x 1-1/2 x 3 | N/A |
| #2 | 1-5/8" in | N/A | 3-1/8" in | 18 x 1-5/8 x 3-1/8 | 14 x 1-5/8 x 3-1/8 | 10 x 1-5/8 x 3-1/8 | N/A |
| #2 | 1-3/4" in | N/A | 3-1/4" in | 18 x 1-3/4 x 3-1/4 | 14 x 1-3/4 x 3-1/4 | 10 x 1-3/4 x 3-1/4 | N/A |
| #2 | 1-7/8" in | N/A | 3-3/8" in | 14 x 1 7/8 x 3 3/8 | 14 x 1-3/4 x 3-1/4 | 10 x 1 7/8 x 3-3/8 | N/A |
| #2 | 2" in | N/A | 3-1/2" in | 18 x 2 x 3-1/2 | 14 x 2 x 3-1/2 | 10 x 2 x 3-1/2 | N/A |
| #2 | 2-1/8" in | N/A | 3-5/8" in | 18 x 2-1/8 x 3 5/8 | 14 x 2-1/8 x 3-5/8 | 10 x 2-1/8 x 3-5/8 | N/A |
| #2 | 2-1/4" in | N/A | 3-3/4" in | 18 x 2-1/4 x 3 3/4 | 14 x 2-1/4 x 3-3/4 | 10 x 2-1/4 x 3-3/4 | N/A |
| #2 | 2-1/2" in | N/A | 3-7/8" in | 18 x 2-1/2 x 3 7/8 | 14 x 2-1/2 x 3-7/8 | 10 x 2-1/2 x 3-7/8 | N/A |
| #2 | 2-3/4" in | N/A | 4" in | 18 x 2-3/4 x 4 | 14 x 2-3/4 x 4 | 10 x 2-3/4 x 4 | N/A |
| #2 | 3" in | N/A | 4-1/4" in | 18 x 3 x 4 1/4 | 14 x 3 x 4-1/4 | 10 x 3 x 4-1/4 | N/A |
| 3/16 Extra Hvy | 2" in | N/A | 3" in | N/A | N/A | N/A | 3/16 x 2 x 3 |
| 3/16 Extra Hvy | 2-1/8" in | N/A | 3-1/8" in | N/A | N/A | N/A | 3/16 x 2-1/8 x 3-1/8 |
| 3/16 Extra Hvy | 2-1/4" in | N/A | 3-1/4" in | N/A | N/A | N/A | 3/16 x 2-1/4 x 3-1/4 |
| 3/16 Extra Hvy | 2-1/2" in | N/A | 31/2-" in | N/A | N/A | N/A | 3/16 x 2-1/2 x 3-1/2 |
| 3/16 Extra Hvy | 2-3/4" in | N/A | 3-3/4" in | N/A | N/A | N/A | 3/16 x 2-3/4 x 3 3/4 |
| 3/16 Extra Hvy | 3" in | N/A | 4" in | N/A | N/A | N/A | 3/16 x 3 x 4 |
Specialty Washers

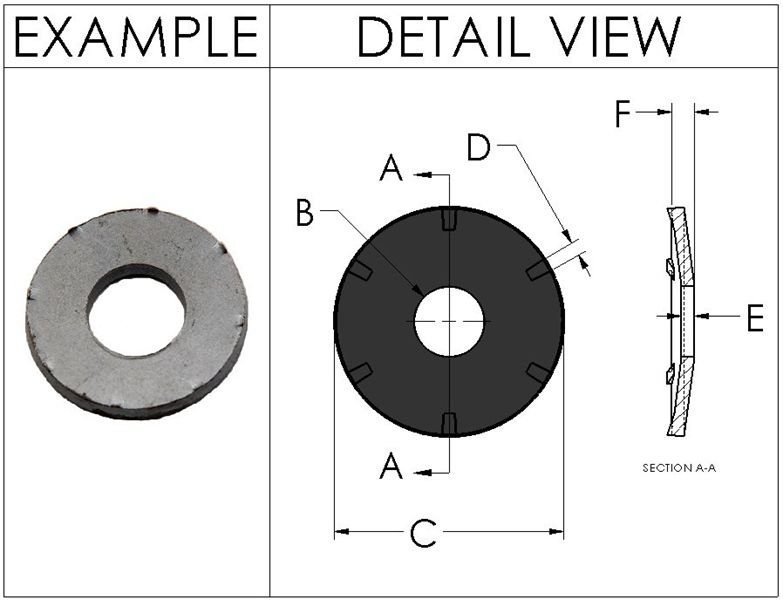

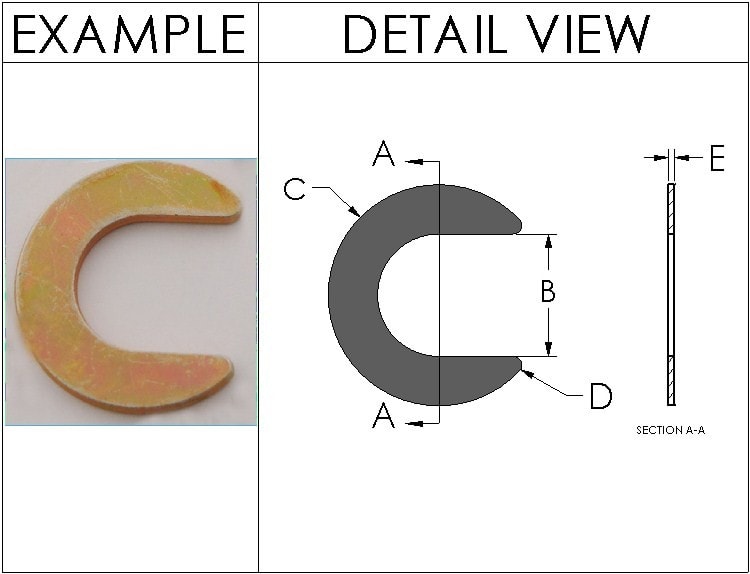

DACO Precision-Tool has been producing as well as supplying specialty washers to various OEM and distributor customers since 1984. Our special washers and custom washers are produced from a range of materials, including low and high carbon steels, stainless steel, brass, copper, aluminum, phosphor bronze, and other alloys. DACO produces all different types, shapes, and sizes of specialty washers (AS SHOWN). Some specialty washers we produce include Bellville washers, Conical Washers, Bow washers, Tooth washers, Wave washers, Hardened washers, Ground washers, C washers, and D washers. Our experienced sales and engineering staff can help you with the best material options as well as other service options, such as heat treated and surface ground shim washers, made complete with galvanization, zinc phosphate, black oxide, E-coating, painting, or other protective finishes. Our tooling engineers and production staff are highly experienced, and work with a variety of simple to very complex tools and production parts, which include components with critical print tolerances. DACO can produce whatever shape or profile you require. Send us your part prints, or a concept drawing or part sample, with the quantities needed and we will quickly help you with a price quote or offer you the best cost saving options available.
